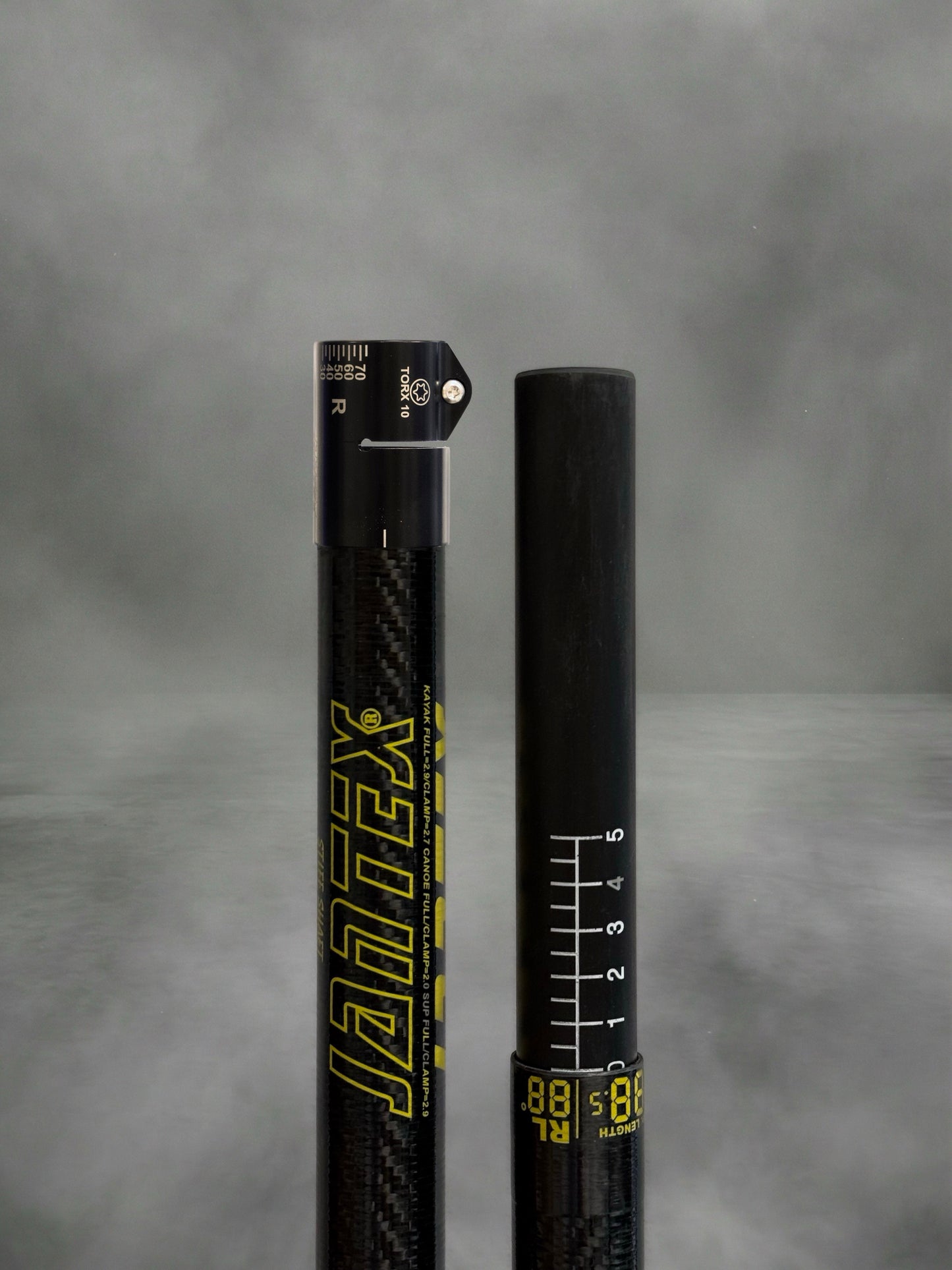

Jantex Titanium Clamp

Jantex Titanium Clamp

$100.00 CAD
$100.00 CAD
Sale Sold out

Jantex Clamp – Upgrade Kit

A premium, leverless retrofit kit designed for high-power sprint, marathon, ocean, and canoe paddlers. Replaces standard nylon clamp systems with Jantex’s elite, tool-tightened titanium clamping mechanism.

Why Upgrade?

  • 25g Weight Reduction: Saves 25 grams compared to the standard 10cm Nylon Clamp + Lock Ring setup—reducing swing weight right at the shaft joint.
  • Zero Corrosion & High Strength: Built from marine-grade titanium, offering an exceptional strength-to-weight ratio with total resistance to rust, pitting, and salt-crust lockups.
  • Low-Profile Anti-Snag Body: The leverless design eliminates protruding parts, preventing accidental clothing snags or thumb catches during high-cadence strokes while preventing unwanted loosening during a race.
  • Maximum Torque & Rigidity: Designed for elite athletes and canoe (C1/C2) paddlers who put immense force into each stroke and require a rock-solid shaft connection.

Specifications & Compatibility

Material Marine-grade black anodized titanium body with silver contrast detailing
Hardware Corrosion-proof Torx-10 compression screw
Weight Savings 25 grams lighter than 10cm Nylon Clamp with Lock Ring system
Shaft Diameter Fits standard 29mm outer diameter Jantex carbon shafts
Paddle System Compatible with Jantex Kayak (K1/K2) and Canoe (C1/C2) adjustable carbon shafts
Adjustment Range Max 5cm length adjustment (Allows maximum inner shaft overlap for ultimate joint stiffness)
Adjustment Type Leverless / Tool-tightened (Designed for competitors who set their length and rarely alter it on the water except for travel)

What's Included in the Kit

1x Jantex Titanium Clamp Collar
1x Torx-10 Marine Compression Screw

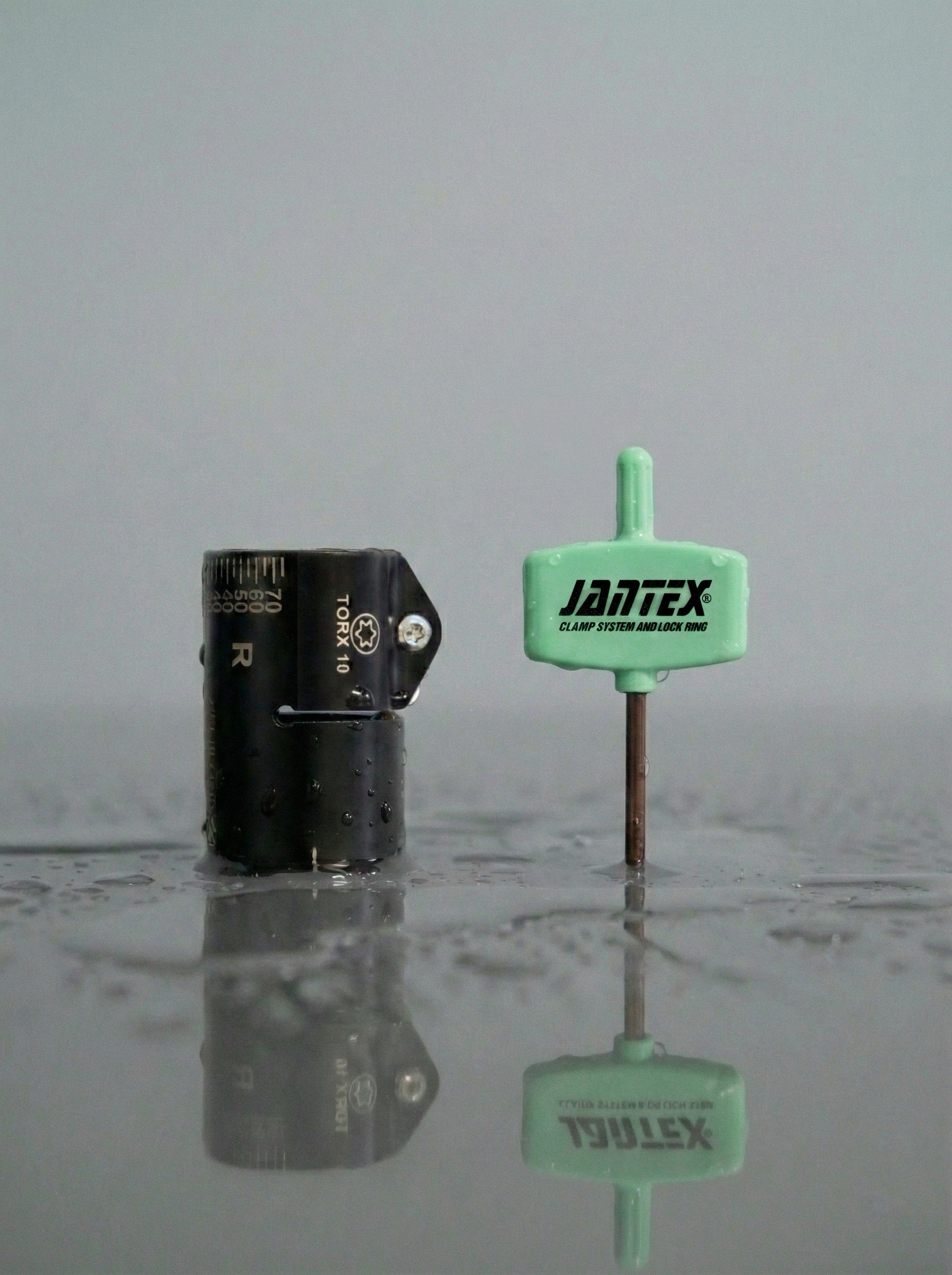

1x Jantex Ergonomic Wing Wrench
1x Jantex Hot Melt Assembly Glue Stick

Step-by-Step Installation Guide

  1. Remove Old Lock Collar
    Requires heat gun or torch
    Apply gentle, indirect heat around the existing nylon clamp to soften the factory glue matrix. Carefully slide the old collar off the shaft once the adhesive releases.
    📺 Watch Jantex Video Tutorial (Episode 3 – Clamp Replacement)
  2. Clean & Prep Carbon Surface
    Scrape away remaining glue residue. Lightly scuff the bonding area on the shaft with fine-grit sandpaper, then wipe clean with isopropyl alcohol for optimal adhesion.
  3. Apply Hot Melt Glue
    Melt and evenly spread the provided Jantex hot melt glue stick around the shaft tip.
    Caution: Eppoxy or permanent adhesives require extreme temperatures to disassemble later, which may damage the carbon shaft resin matrix.
  4. Slide & Align Clamp
    Slide the titanium clamp into position over the warm adhesive. Align the clamp orientation quickly before the hot melt glue cools and sets.
  5. Torque Hardware
    Insert the Torx-10 compression screw and tighten securely using the included Jantex wing wrench tool.
